Understanding the Ford Transit Fuel Vaporiser: How It Works and Why It Fails
Share
If you drive or manage a Ford Transit, you already know it is the backbone of Britain's roads. But if your van has suddenly lost power, thrown up an engine management light, or entered the dreaded limp mode, a small, often overlooked component could be the culprit: the fuel vaporiser.
At Express Car Parts, we see thousands of Transit owners searching for answers when their Diesel Particulate Filter (DPF) stops regenerating. Here is a straightforward breakdown of what the fuel vaporiser does, how it works, and how to spot the signs of failure.
What is a Fuel Vaporiser?

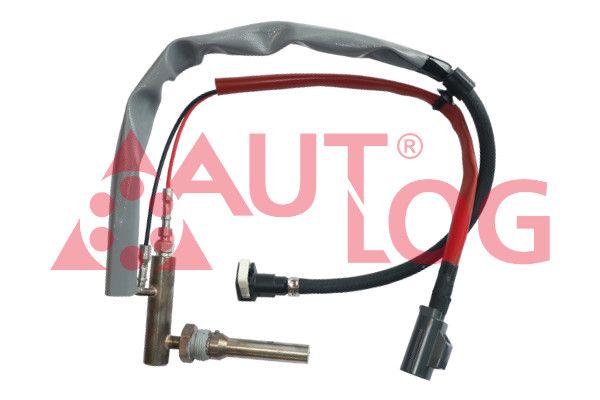

The fuel vaporiser (sometimes called a fuel vapour valve or 5th injector) is a small, specialized device fitted directly into the exhaust system, upstream of the DPF.
Unlike older diesel systems that injected extra fuel directly into the engine cylinders to heat the exhaust, Ford utilizes a separate vaporiser system. This design provides a cleaner, safer, and much more efficient way to manage emissions.
How Does a Ford Transit Fuel Vaporiser Work?
For your DPF to burn off trapped soot particles (a process called regeneration), the exhaust gas needs to reach extremely high temperatures—usually between 600°C and 650°C. Normal driving rarely gets the exhaust this hot. That is where the vaporiser comes into play:
- The Signal: When the van's Engine Control Unit (ECU) detects that the DPF is getting full of soot, and conditions are ideal (such as steady motorway driving), it triggers an active regeneration.
- Fuel Delivery: A dedicated micro-fuel pump pushes a small amount of diesel down a line directly to the vaporiser valve.
- Vaporisation: Inside the vaporiser, an integrated electric glow plug rapidly heats up. As the diesel passes over it, the liquid instantly evaporates into a fine vapour.
- The Chemical Burn: This vaporised fuel is sprayed into the exhaust stream just ahead of the catalytic converter. The vapour reacts chemically with the catalyst, igniting safely in the exhaust stream to raise the temperature significantly before hitting the DPF
-
The Clean Out: The intense heat burns the trapped soot into tiny ash particles, clearing your filter and restoring engine efficiency.
The Big Advantage: No Oil DilutionOlder methods of DPF regeneration injected raw fuel into the engine combustion chamber, which often washed down the cylinder walls, mixed with engine oil, and diluted it. By moving this process completely into the exhaust, the Ford Transit vaporiser prevents oil dilution, dramatically extending engine life and reliability.Common Signs of a Blocked or Faulty VaporiserBecause the vaporiser lives in the harsh environment of your exhaust, it is prone to extreme heat and soot accumulation. Over time, the tiny nozzle can become completely blocked with carbon.If your fuel vaporiser stops working, your DPF cannot regenerate. Look out for these common red flags:
- Engine Management / Service Lights: Your dashboard will likely prompt a DPF error.
- Limp Mode: The van will suffer a severe loss of power to protect the engine from a blocked exhaust.
- Frequent or Failed Regenerations: You might notice your engine cooling fans running constantly or sounding unusually harsh as the van attempts—and fails—to clear the DPF.
- Diagnostic Trouble Codes (DTCs): If you hook your Transit up to a diagnostic tool, classic Ford vaporiser fault codes include P246B, P2463, P244C, or P269D (which specifically indicates a glow plug circuit fault).
Don't Just Change the DPF!A classic mistake many owners make is replacing a blocked DPF without checking why it blocked in the first place. If the fuel vaporiser is clogged or its internal glow plug has failed, a brand-new DPF will simply block up again within a few hundred miles.Whenever you are addressing DPF issues on a Euro 5 or Euro 6 Ford Transit, always test or inspect the fuel vaporiser first.Get the Right Parts FastIf your mechanic has confirmed your vaporiser has seen better days, we have you covered. Keep your business moving and avoid expensive garage markups by browsing our high-quality replacement parts.
